GMADE 1/10 GS02F BUFFALO TS RTR Scale Crawler

STEEL LADDER FRAME
The frame of GS02F chassis is designed to look like a real truck's frame. It is made of high strength steel, and the C-channel side rail with bolt-in crossmembers make it resistant to twisting and warping. The steel parts are finished with powder coating to prevent rusting.

INNER FENDERS
The inner fenders are directly fixed to the frame to reduce flex and bend of the chassis and parts. They also prevent objects from entering into the chassis during the driving.

ADJUSTABLE WHEELBASE
The GS02F chassis allows two wheelbases: 313mm out of the box, and can be adjusted to 324mm for custom bodies. (Optional link kits are required and sold separately)

FRONT WEIGHT BALANCE
Weight balance of the GS02F chassis is forward biased. This increases traction of the front wheels and provides better crawling performance on steep hills or rocks. It also minimizes rolling over backwards when climbing.

FRONT MOUNTED MOTOR
The front mounted motor helps with the vehicle's weight balance.
Either a 540 or 550 size motor can be mounted, and a cooling fan will be easily fitted to the incorporated structure.

MULTIPLE BATTERY SIZE AND LOCATIONS
The battery tray of the GS02F chassis can hold all sizes of Lipo and Ni-MH batteries, and can be fitted to various locations for adjusting weight bias or increased clearance.

CHASSIS MOUNTED SERVO SYSTEM
WITH PANHARD BAR
The steering servo mount in the GS02F chassis is located on the frame, eliminating bump steering effects caused by front suspension movements. Additionally the panhard-bar is cleverly designed to avoid any interference with nearby parts, so the front suspension and shocks can move freely.

TORQUE TWIST REDUCE TRANSMISSION
TTR(Torque Twist Reduce) transmission is designed to reduce unnecessary torque so the vehicle will drive with more stability. From the transmission, the front and rear universal shafts rotates clockwise and counterclockwise, and these opposite rotations compensate for rotational forces (torque) and reaction(reverse torque).

SD SCALER SHOCK ABSORBER
SD scale shock is a coil-over style shock absorber which is optimized for scale trucks. High durability aluminum shock bodies and 3.5mm heavy duty shock shafts will ensure smooth driving on rough surfaces. Spring adjusters make it easy to change the ride-height of the vehicle so you can quickly adapt settings to any driving conditions.

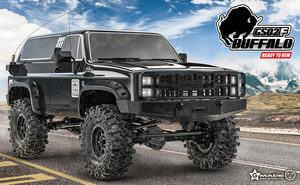

BUFFALO LEXAN BODY
The Buffalo RTR body is made of high quality 1.5mm thick polycarbonate, for high strength and detail.
To add realistic details, it comes with high-strength plastic accessories which include a front grille, light buckets, side mirrors, wipers, door handles, overfenders, and an antenna, so you can have a realistic off-road vehicle to match the concept of true off-road adventures.
Also includes decals with realistic details.

Equipment Needed (Not Included):
Charger
Battery
AA Batteries

Specifications:

• Width: 326mm
• Height: 241mm
• Length: 544mm
• Wheel Base: 313mm
• Ground Clearance: 72mm
• Weight (no electronics): 2.06kg
