RAW 100 Mini Black Servo Programmable
Sales price $125.99
gross price plus delivery
Sales price without tax $119.99
Tax amount $6.00
Total Tax: $6.00
Description

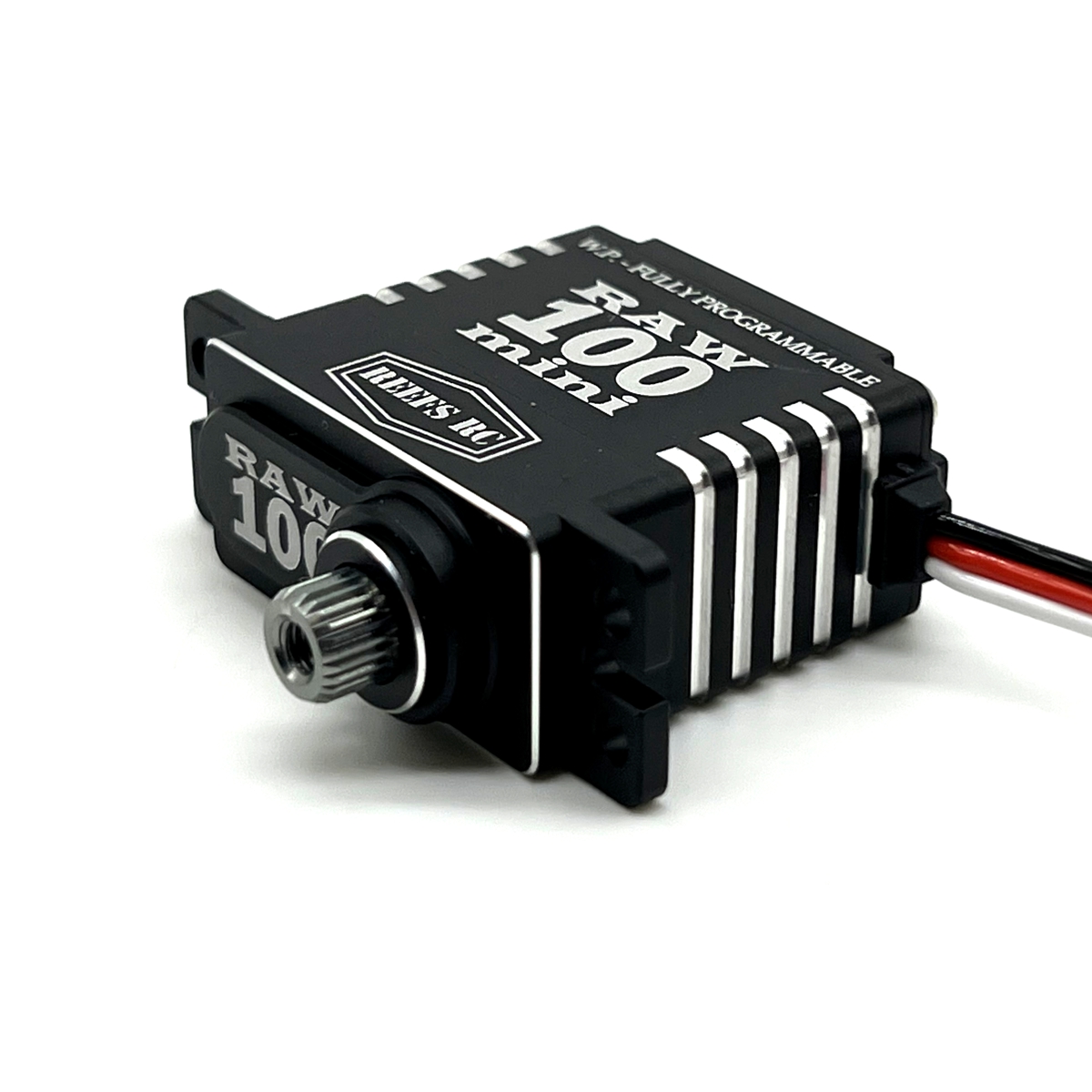

REEFS RC RAW 100 Mini Servo is a powerhouse in a small package. The heatsink all aluminum waterproof case design ensures it is ready to go for any application. The servo is fully programmable with REEFS LINK (sold separately).
Features:
- High Torque High Speed Mini Coreless Servo
- Submarine Waterproof
- Magnetic Angle Sensor, Pulse Width Modulation Control
- REEFS LINK required for Programming
- Temp Rate: -15C ~ +70C
- Voltage: 6V-8.4V; Dead Band Width: 2microseconds
Specifications:
- All Metal Gears, CNC Aluminum Casing with integrated Heat Sink design, Bearing Type: 2BB, 25T Spline
- Dimension (LWH):1.16x.55x1.14in / 29.5x14x29mm, Weight: 1.05oz / 30g
- Torque: 85oz-in @ 6.0V/95oz-in @ 7.4V/103oz-in @ 8.4V
- Speed: .11sec @ 6.0V/.10sec @ 7.4V/.08sec @ 8.4V
- Unload Current: 180mA/200mA/230mA/260mA @ 4.8V/6.0V/7.4V/8.4V
- Load Current: 1.2A/1.4A/1.5A/1.8A @ 4.8V/6.0V/7.4V/8.4V
