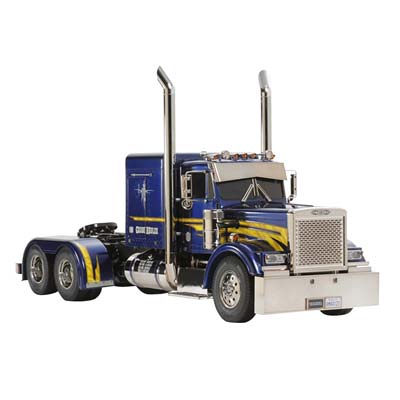

Tamiya 1/14 Grand Hauler Semi Tractor Truck Kit

Chassis: Ladder frame with aluminum channels and resin cross members
Cabin: ABS plastic, grille and mirrors, clear plastic windows
Drive: Shaft driven from front mounted motor to rear axles which are
equipped with differentials
Motor: RS540
Transmission: Three speed servo controlled constant mesh, allows
shift on the fly low, medium and high, in forward and reverse
Shocks: Aluminum body, friction (not-oil filled), coil springs
Suspension: Die cast metal front axle and reinforced resin rear
axles float mounted on metal leaf springs and coil spring shocks
Wheels: Chrome plated plastic
Tires: Ten, treaded rubber construction

1/14 scale Tamiya Grand Hauler kit, 540 motor, tires, cabin,
wheels, decal sheet, 3-speed transmission, instructions and coupler
unit for trailer (trailer not included)

Radio: 4-channel with 4-channel receiver, NOTE; radio w/analog or
digital trims can be used if not planning to use the Multi
Function Unit, if Multi Function Unit will be used, a radio with
analog trims MUST be used
Servos: Two standard size for steering and shifting
Electronic Speed Control: Tamiya TEU302BK (TAMM3178) recommended, do
not use the Tamiya TEU101BK or the TEU104BK
Battery: 6-cell stick
Battery Charger: Timed or peak for 6-cell battery
Paint, building & track equipment

Length: 27.2" (692mm)
Width: 7.5" (190mm)
Height: 11.8" (300mm)
Gear Ratio: Low Gear 1:32.49
2nd Gear 1:17.66
3rd Gear 1:10.66

The Tamiya Multi Function Control Unit (TAMC6511) not included,
provides many different truck related sound effects. The Multi
Function Control Unit REQUIRES a radio with analog trims

The following Tamiya paint colors are recommended in the manual;
TS-89 Pearl Blue, TAMR5089
TS-29 Semi-Gloss Black, TAMR5029
X-9 Brown, TAMR1509 TAMR8109
X-11 Chrome Silver TAMR1511, TAMR8111
