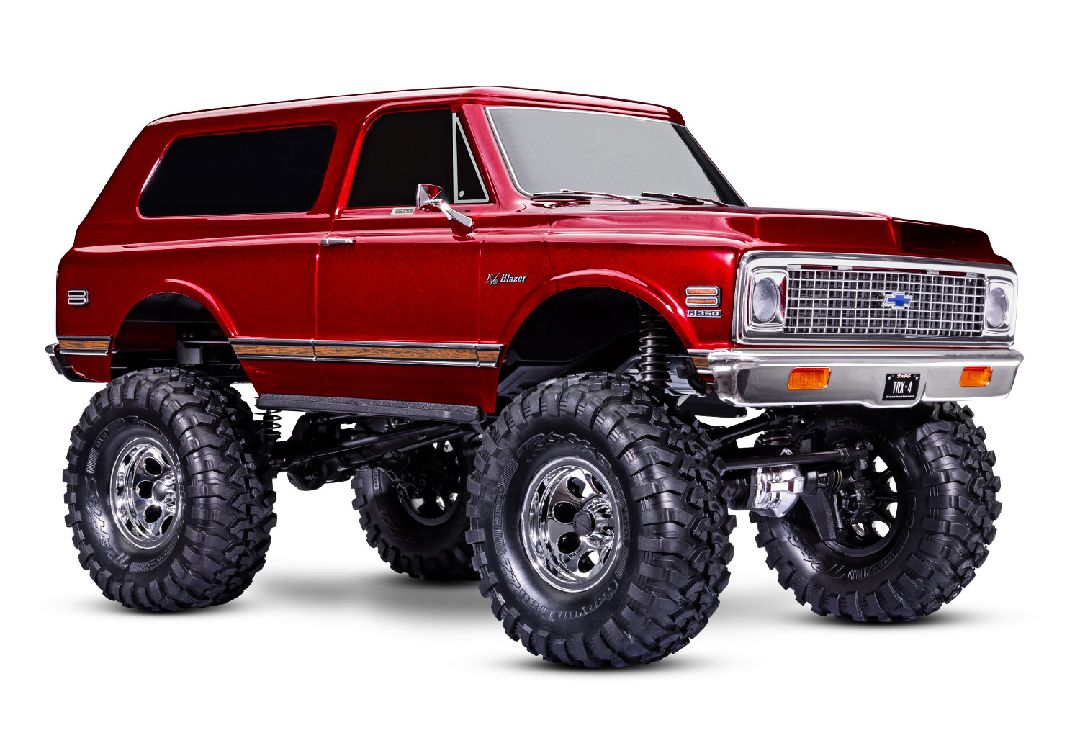

Traxxas TRX-4 1972 K5 Blazer High Trail - Red

Traxxas TRX-4 1972 K5 Blazer High Trail - Blue - In Store Sales Start June 2, 2023, Online Sales begin June 16, 2023.

The 1972 Chevrolet® K5 Blazer gets the full High Trail treatment with a big, lifted stance and beautifully detailed body. The factory-installed Long Arm Lift Kit boosts the Blazer’s ground clearance by more than an inch with larger 2.2″ wheels and tires to conquer the roughest terrain. K5 Blazer High Trail Edition delivers more of what you crave—extreme all-terrain capability, stunning scale looks, and Traxxas-Tough™ durability.

HIGH TRAIL EDITION
Large 2.2″ chrome mag wheels and Canyon Trail tires tame even the most technical trails to extend your scale adventures farther than ever before. The factory-installed Long Arm Lift Kit raises K5 Blazer over an inch taller for superior ground clearance.

DETAILED REPLICA BODY
The TRX-4 K5 Blazer faithfully reproduces one of the most iconic Chevy trucks to ever hit the trail. Bright chrome accents contrast the high-gloss paint for an unmistakable look. The injection-molded grille, side mirrors, and simulated wood trim give K5 Blazer uncompromising scale presence.

CLIPLESS BODY MOUNTING
The clipless body’s hidden latching system gives K5 Blazer High Trail Edition clean, flowing lines for new level of scale realism and convenience. On the trail, K5 Blazer’s clipless body holds tight when you need it, but releases in just seconds to access the chassis.

Specs:
Length: 20.67 inches (525mm)
Front Track: 10.63 inches (270mm)
Rear Track: 10.63 inches (270mm)
Center Ground Clearance: 4 inches (99mm)
Weight (w/o battery): 7.26lbs (3.30kg)
Height (overall): 11.22 inches (285mm)
Wheelbase: 12.28 inches (312mm)
Approach Angle: 69.2°
Departure Angle: 55.7°
Breakover Angle: 79.3°
Front Shock Length: 4.33 inches (110mm)
Rear Shock Length: 4.33 inches (110mm)
Front Wheels: 2.2 x 1.34 inches (56 x 34mm)
Rear Wheels: 2.2 x 1.34 inches (56 x 34mm)
Front Tires: 5.3 x 2.14 inches (135 x 54mm)
Rear Tires: 5.3 x 2.14 inches (135 x 54mm)
Hex Size: 12mm
Speed Control: XL-5 HV
Motor (electric): 21T Reverse Rotation
Transmission: 2-speed High/Low, Remote Shifting
Gear Pitch: 32P
Differential Type: 4 Gear, Remote Locking
Chassis Structure / Material: Steel Ladder Frame with Nylon Composite Crossmembers
Brake Type: Electronic “Hill Hold”
Drive System: Shaft Driven 4WD
Steering: Chassis Mounted Servo
Servo: 2075X Metal Gear
Transmitter: TQi™ 2.4 GHz 4-Channel Transmitter
Receiver: 6533
Skill Level: 1
Battery Tray: 158.75 L x 47 W x 23/26mm H

Motor Specs:
Type: High-torque brushed motor
Size: 550
Weight: 390g (13.76oz)
Length: 3.071″ (78mm) overall length, 2.25″ (57mm) can length, 1.532″ (38.9mm diameter)
Turns: 21T reverse rotation
Voltage: 16.8V

Esc Specs:
Input Voltage: 6–7 Cells NiMH, 2–3s LiPo
Case Size: 1.23” W x 2.18” D x 1.04” H
Weight: 2.6oz (74g)
Motor Limit: 21-turns (550 size)
On Resistance Forward: 0.004 Ohms
On Resistance Reverse: 0.004 Ohms
Peak Current - Forward: 100A
Peak Current - Reverse: 100A
Braking Current: 60A
Continuous Current: 18A
BEC Voltage: 6.0 VDC
BEC Current: 1A
Power Wire: 14 Gauge / 5”
Input Harness Wire: 26 Gauge / 14.5”Transistor Type: MOSFET
PWM Frequency: 1700Hz
Low Voltage Detection (LVD): 2-Stage indicators, switchable (on or off)
Thermal Protection: Thermal Shutdown
Profile selection:
Sport Mode: 100% FWD, 100% brakes, 100% REV
Race Mode: 100% FWD, 100% brakes, no REV
Training Mode:* 50% FWD, 100% brakes, 50% REV
Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral
Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
Single-button setup: Yes, Traxxas EZ-Set®

Features:

Officially Licensed 1972 Chevrolet® K5 Blazer Body
Scale details: deep-inset front grille, chrome bumpers, side trim & mirrors, door handles, and wipers
LED-ready headlights and tail lights
Authentic decal sheet
Full Nylon composite wheel wells and floor pans

Clipless Body Mounting
Clipless design for smooth body appearance
Rugged internal body cage for added rigidity
Body details mount directly to internal frame

Trail-tuned XL-5 HV Waterproof Electronic Speed Control
Fully waterproof design
Five drive profiles
Sport Mode — forward / brake / reverse
Race Mode — forward / brake / no reverse
Training Mode™ — 50% forward / 100% brake / 50% reverse (patented)
Trail Mode — forward / brake / reverse / with trail-tuned drag brake in neutral
Crawl Mode — forward / instant reverse - no neutral with 100% hill holding brake
Traxxas EZ-Set® one-button setup
Large, efficient heat sink
Wide voltage latitude 6–7 cell NiMH (7.2–8.4V) and 2–3s LiPo (7.4–11.1V)
Two stage low voltage protection (LVD)

Motor
Powerful Titan® 21T reverse rotation motor with internal cooling fan
Precision, preset gear mesh adjustments
Motor retention separate from gear mesh

Factory-Installed Long Arm Lift Kit
Increases ground clearance over 1″
Maintains precise steering geometry
Accommodates oversize 2.2″ wheels and tires

Steel Ladder Frame
312 mm wheelbase
Full-length 1.5 mm steel frame rails
Bumpers adjust fore and aft
Rugged rock rails adjust for width
Wire routing clips integrated into frame rails

Portal Axles
Increase ground clearance
Eliminate torque twist
Steel gears
Improve axle geometry and reduce strain on driveshafts

Drivetrain
Full-time shaft driven 4-wheel drive
Tough 6 mm stub axles
Steel front CV driveshafts
Hardened steel rear axle shafts
Remote locking steel gear differentials with cable-actuation
Steel gear transfer case

Innovative Battery Compartment
Hinged battery strap allows quick and easy battery access
No pins to lose
Accommodates different height batteries
Accepts full-size long battery packs
Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)

Transmission
Two speed high/low range with remote shifting
Dual horizontal shafts
Twin friction plate slipper clutch
Easily removed for servicing

Steering
Chassis mounted 2075X metal gear digital servo
Superior 45° steering angle
Direct steering (no servo saver)
Steel servo horn
Steering geometry corrected for bump steer

Suspension
Front — 3 link with panhard
Rear — Triangulated 4 link
Heavy-duty rod ends with steel hollow balls
5 mm diameter steel link rods with 4 mm threaded ends

Extended Aluminum GTS Shocks
Oil-filled coilover GTS shocks exclusive to TRX-4 chassis
Extra-long aluminum bodies for greater articulation
Threaded bodies with collars easily adjust ride height
Silky smooth damping for the toughest trails
O-ring cap seal and dual X-ring shaft seals

Oversize Wheels and Tires
2.2″ chrome mag wheels with hub inserts
Pre-mounted 2.2″ Canyon Trail tires with trail-tuned foam inserts
Trail tuned S1 rubber compound
12 mm steel hex

Transmitter
TQi™ 2.4GHz 4-channel transmitter
Traxxas Link enabled
Telemetry ready #6533 5-channel micro receiver with failsafe
Automatically stores and loads settings for up to 30 Traxxas Link enabled models
Exclusive Cruise Control feature for extended trail driving
Adjustable steering and throttle sensitivity (exponential)
Adjustable steering and throttle endpoints
High 13 ms frame rate and near-zero latency for responsive control
Patented O-ring sealed watertight receiver box keeps the micro receiver dry

Sealed Ball Bearings
Hex hardware with rust-resistant black oxide coating

What’s In The Box:
TRX-4, Ready-To-Race® model
XL-5 HV waterproof electronic speed control
Titan® 21T reverse rotation motor
TQi™ 2.4GHz radio system with cruise control
High quality maintenance tools

What You’ll Need:
Batteries
TRX-4 accepts a wide variety of NiMH (4–7 cell) and LiPo (2s–3s) batteries.

Charger
Traxxas EZ-Peak® Live charger is recommended for easy and fast charging performance (model #2971).

AA Alkaline Batteries
Four AA alkaline batteries for the transmitter.
