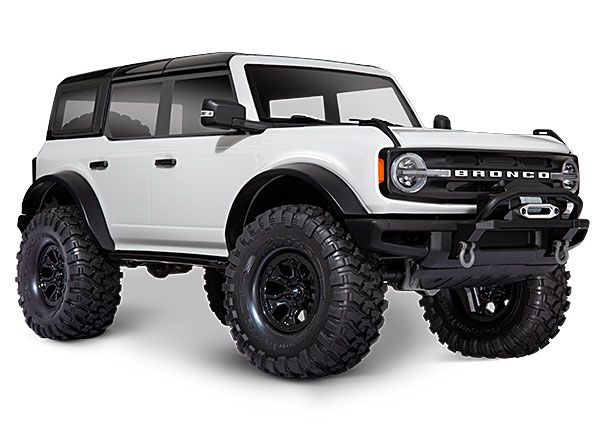

Traxxas TRX4 Scale & Trail 2021 Ford Bronco 1/10 Crawler White
.jpg)
Sales price $734.99
gross price plus delivery
Sales price without tax $699.99
Tax amount $35.00
Total Tax: $35.00
temp out of stock
Description
2021 Ford Bronco TRX4 Scale and Trail Crawler
AN OFF-ROAD LEGEND RETURNS
The legend is back. After 25 years, the Bronco has returned as Ford's top-performing 4X4 and America's most sought-after SUV. Traxxas has captured the eagerly-anticipated Bronco in exacting detail with all the capability and versatility of the award-winning TRX-4. The Traxxas Bronco combines Ford-approved realism and class-leading performance for exciting off-road adventure no matter where the trail takes you.
INNOVATION
Radically innovative technology combines with precision engineering to create a completely new breed of scale crawler... Only from Traxxas.
DETAILS
The TRX-4's extreme off-road capability lies in the technology beneath its rugged exterior.
| Vehicle Specs | |
|---|---|
| Length (overall): | 22.98 inches (584mm) |
| Length (chassis): | 21.59 inches (549mm) |
| Front Track: | 9.78 inches (249mm) |
| Rear Track: | 9.78 inches (249mm) |
| Ground Clearance: | 3.14 inches (80mm) |
| Weight: | 6.42lb (2.91kg) |
| Height: | 9.4 inches (239mm) |
| Wheelbase: | 12.8 inches (324mm) |
| Front Shock Length: | 3.54 inches (90mm) |
| Rear Shock Length: | 3.54 inches (90mm) |
| Front Wheels: | 1.9 x 1.02 inches (49 x 26mm) |
| Rear Wheels: | 1.9 x 1.02 inches (49 x 26mm) |
| Front Tires: | 4.64 x 1.89 inches (118 x 48mm) |
| Rear Tires: | 4.64 x 1.89 inches (118 x 48mm) |
| Approach Angle: | 52° |
| Departure Angle: | 49° |
| Breakover Angle: | 58° |
| Hex Size: | 12mm |
| Speed Control: | XL-5 HV |
| Motor (electric): | 21T Reverse Rotation |
| Transmission: | 2-speed Hi-Lo, Remote Shifting |
| Gear Pitch: | 32P |
| Differential Type: | 4 Gear, Remote Locking |
| Chassis Structure / Material: | Steel Ladder Frame with Nylon Composite Crossmembers |
| Brake Type: | Electronic "Hill Hold" |
| Drive System: | Shaft Driven 4WD |
| Steering: | Chassis Mounted Servo |
| Servo: | 2075X Metal Gear |
| Transmitter: | TQi 2.4 GHz 4-Channel Transmitter |
| Receiver: | 6533 |
| Skill Level: | 1 |
| Battery Tray: | 158.75 L x 47 W x 23/26mm H |
| Motor Specs | |
| Type: | High-torque brushed motor |
| Size: | 550 |
| Weight: | 390g (13.76oz) |
| Length: | 3.071" (78mm) overall length, 2.25" (57mm) can length, 1.532" (38.9mm diameter) |
| Turns: | 21T reverse rotation |
| Voltage: | 16.8V |
| ESC Specs | |
| Input Voltage: | 6-7 Cells NiMH, 2-3s LiPo |
| Case Size: | 1.23" W x 2.18" D x 1.04" H |
| Weight: | 2.6oz (74g) |
| Motor Limit: | 21-turns (550 size) |
| On Resistance Forward: | 0.004 Ohms |
| On Resistance Reverse: | 0.004 Ohms |
| Peak Current - Forward: | 100A |
| Peak Current - Reverse: | 100A |
| Braking Current: | 60A |
| Continuous Current: | 18A |
| BEC Voltage: | 6.0 VDC |
| BEC Current: | 1A |
| Power Wire: | 14 Gauge / 5" |
| Input Harness Wire: | 26 Gauge / 14.5" |
| Transistor Type: | MOSFET |
| PWM Frequency: | 1700Hz |
| Low Voltage Detection (LVD): | 2-Stage indicators, switchable (on or off) |
| Thermal Protection: | Thermal Shutdown |
| Profile selection: | Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode: 50% FWD, 100% brakes, 50% REV Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral |
| Single-button setup: | Yes, Traxxas EZ-Set |
Features:
- Officially Licensed 2021 Ford Bronco Body
- Two-tone paint with black roof and clear windows
- LED-ready headlights and tail lights with multi-function capability
- Scale details
- Black molded grille with white Bronco logo
- Replica hood cowl w/ wipers and folding mirrors
- Replica spare tire mount
- Replica door handles
- Tough PVC fender flares, wheel wells, and floor pans
- Front and rear Bronco bumpers with skid plate and replica winch
- Clipless Body mounting
- Clipless design for smooth body appearance
- Rugged internal body cage for added rigidity
- Body details mount directly to internal frame
- Trail-tuned XL-5 HV Waterproof Electronic Speed Control
- Fully waterproof design
- Five drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake / no reverse
- Training Mode - 50% forward / 100% brake / 50% reverse (patented)
- Trail Mode - forward / brake / reverse / with trail-tuned drag brake in neutral
- Crawl Mode - forward / instant reverse - no neutral with 100% hill holding brake
- Traxxas EZ-Set one-button setup
- Large, efficient heat sink
- Wide voltage latitude 6-7 cell NiMH (7.2-8.4V) and 2-3s LiPo (7.4-11.1V)
- Two stage low voltage protection (LVD)
- Motor
- Powerful Titan 21T reverse rotation motor with internal cooling fan
- Precision, preset gear mesh adjustments
- Motor retention separate from gear mesh
- Portal Axles
- Increase ground clearance
- Eliminate torque twist
- Steel gears
- Improve axle geometry and reduce strain on driveshafts
- Rigid Steel Frame
- 1.5mm thick steel frame rails increase torsional rigidity
- Innovative design allows four wheelbase positions (300mm, 312mm, 324mm, 336mm)
- Adjustable rear shock tower positions for SWB and LWB configurations
- Rugged rock rails adjust for width
- Wire routing clips integrated into frame rails
- Drivetrain
- Full-time shaft driven 4-wheel drive
- Tough 6mm stub axles
- Steel front CV driveshafts
- Hardened steel rear axle shafts
- Remote locking steel gear differentials with cable-actuation
- Steel gear transfer case
- Innovative Battery Compartment
- Hinged battery strap allows quick and easy battery access
- No pins to lose
- Accommodates different height batteries
- Accepts full-size long battery packs
- Integrated compartment accepts smaller 1/16 scale batteries (with optional strap)
- Secondary front battery tray accepts smaller 1/16 scale batteries (with optional strap)
- Transmission
- Two speed high/low range with remote shifting
- Dual horizontal shafts
- Twin friction plate slipper clutch
- Easily removed for servicing
- Steering
- Chassis mounted 2075X metal gear digital servo
- Superior 45° steering angle
- Direct steering (no servo saver)
- Steering geometry corrected for bump steer
- Suspension
- Front - 3 link with panhard
- Rear - Triangulated 4 link
- Heavy-duty rod ends with steel hollow balls
- 5mm diameter steel link rods with 4mm threaded ends
- Aluminum GTS Shocks
- Oil-filled coilover GTS shocks
- Silver-anodized aluminum bodies
- Threaded bodies with collars easily adjust ride height
- Silky smooth damping for the toughest trails
- O-ring cap seal and dual X-ring shaft seals
- Wheels and Tires
- Replica black 2021 Bronco wheels
- Pre-mounted 1.9" Canyon Trail tires with trail-tuned foam inserts
- Trail tuned S1 rubber compound
- 12mm steel hex
- Transmitter
- TQi 2.4GHz 4-channel transmitter
- Traxxas Link enabled
- Telemetry ready #6533 5-channel micro receiver with failsafe
- Automatically stores and loads settings for up to 30 Traxxas Link enabled models
- Exclusive Cruise Control feature for extended trail driving
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle endpoints
- Patented O-ring sealed watertight receiver box keeps the micro receiver dry
- Sealed Ball Bearings
- Hex hardware with rust-resistant black oxide coating
What's In The Box:
- TRX-4, Ready-To-Race model
- XL-5 HV waterproof electronic speed control
- Titan 21T reverse rotation motor
- TQi 2.4GHz radio system with cruise control
- High quality maintenance tools
What You'll Need:
- Batteries
- TRX-4 accepts a wide variety of NiMH (4-7 cell) and LiPo (2s-3s) batteries.
- Charger
- Traxxas EZ-Peak Live charger is recommended for easy and fast charging performance (TRA2971).
- AA Alkaline Batteries
- Four AA alkaline batteries for the transmitter.
